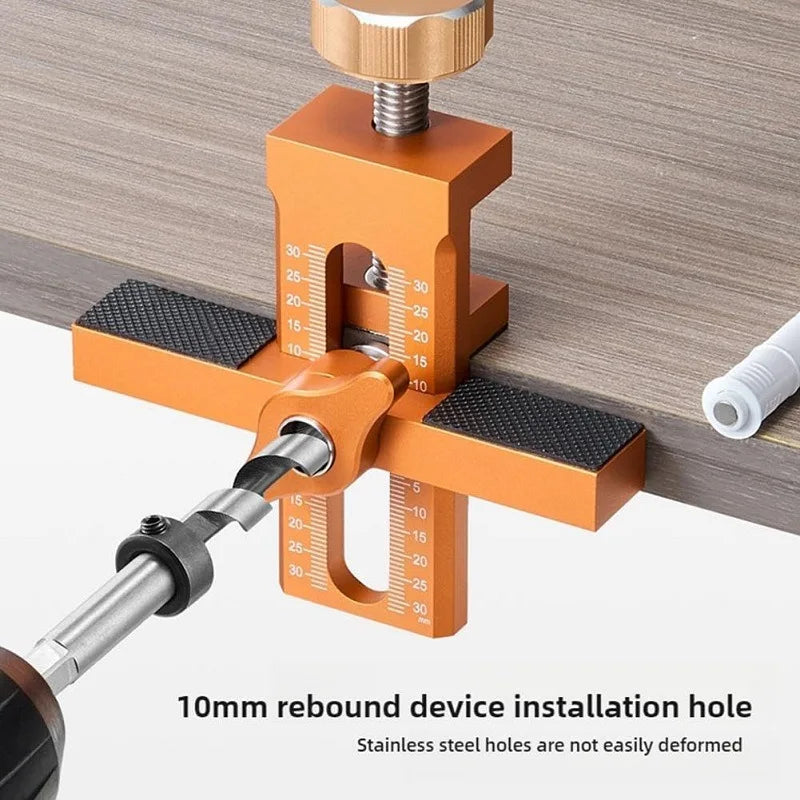

Cabinet Door Installation Jig — 2-in-1 Bidirectional Scale Drilling & Rebounding Positioning Tool, 3 Kit Options

Hang Cabinet Doors Perfectly. First Time. Every Time.

Cabinet door installation shouldn't require three hands and a prayer. The Cabinet Door Installation Jig is a 2-in-1 positioning and drilling tool that holds your door panel in place while you work — giving you precise, repeatable results whether you're fitting a single door or an entire kitchen. With a bidirectional metric scale, anti-slip pads, and 8mm all-aluminum alloy construction, this is the jig that professional carpenters and serious DIYers reach for first.

✨ Key Features

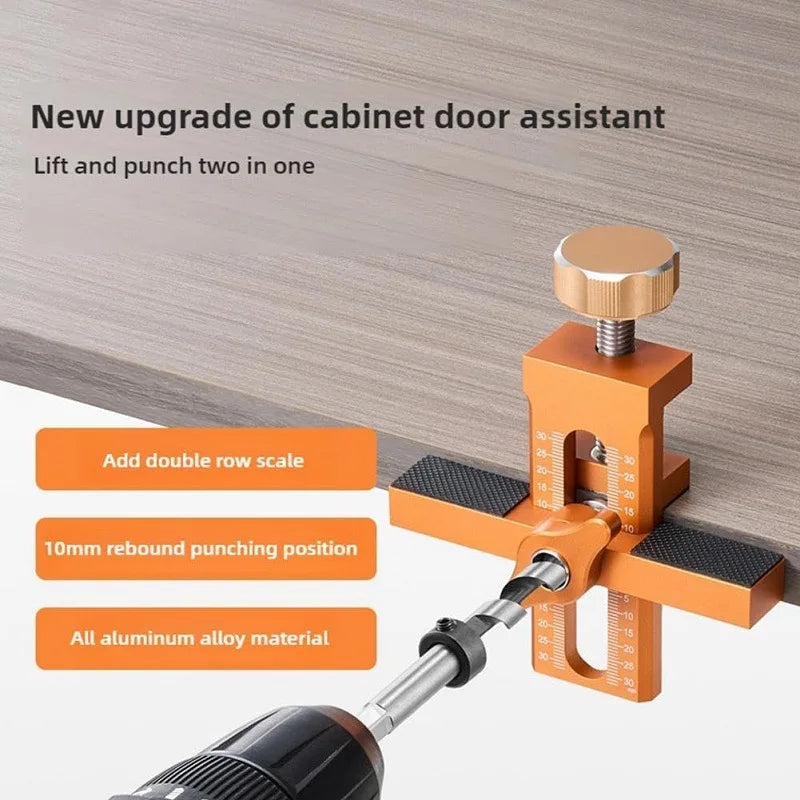

• 2-in-1 Functionality — Combines door panel installation support with a drilling positioning guide in a single tool — no need for separate aids
• Bidirectional Scale — Both positive and negative scale markings let you work from either direction, adapting to different cabinet configurations and space constraints
• Wide Clamping Range: 7–41mm — Single layer supports up to 20mm; double layer clamps up to 41mm — covering the vast majority of cabinet door thicknesses

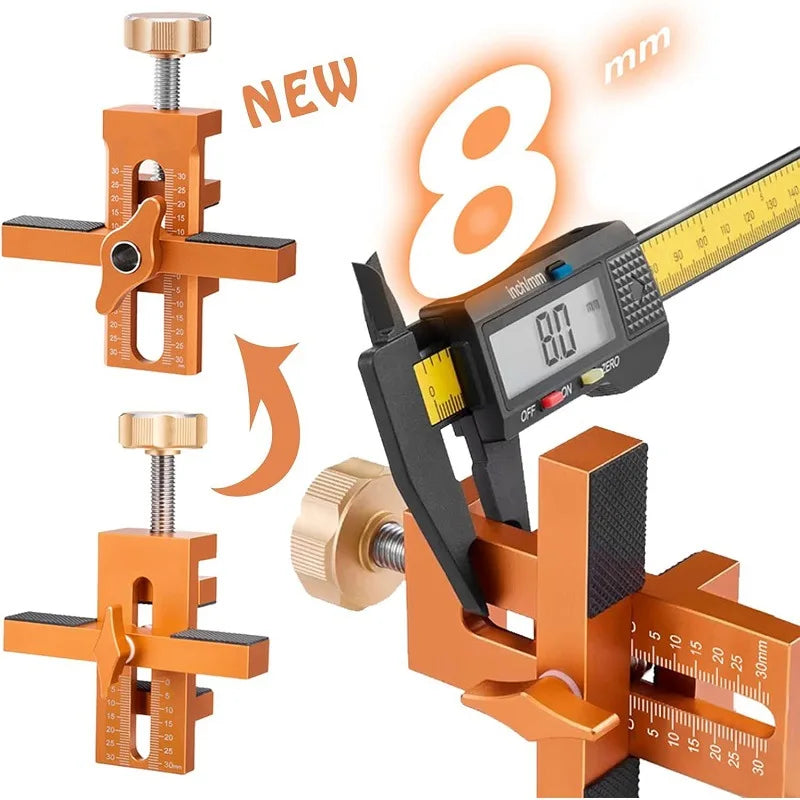

• 8mm All-Aluminum Alloy Body — Thick, rigid aluminum construction that won't flex or deform under pressure, ensuring consistent accuracy job after job
• Anti-Slip Pads Included — Protective pads grip the board surface securely without scratching or damaging the panel finish
• Quick Positioning — Accurately aims at the scale markings to lock in height requirements fast, reducing installation time significantly
• 3 Kit Options — Choose from Kit A, B, or C to match your project scope and tool requirements

📋 Specifications

• Material: Aluminum Alloy (8mm)
• Color: Orange
• Scale: Metric (bidirectional)
• Single Layer Capacity: Up to 20mm
• Double Layer Capacity: Up to 41mm
• Clamping Range: 7–41mm

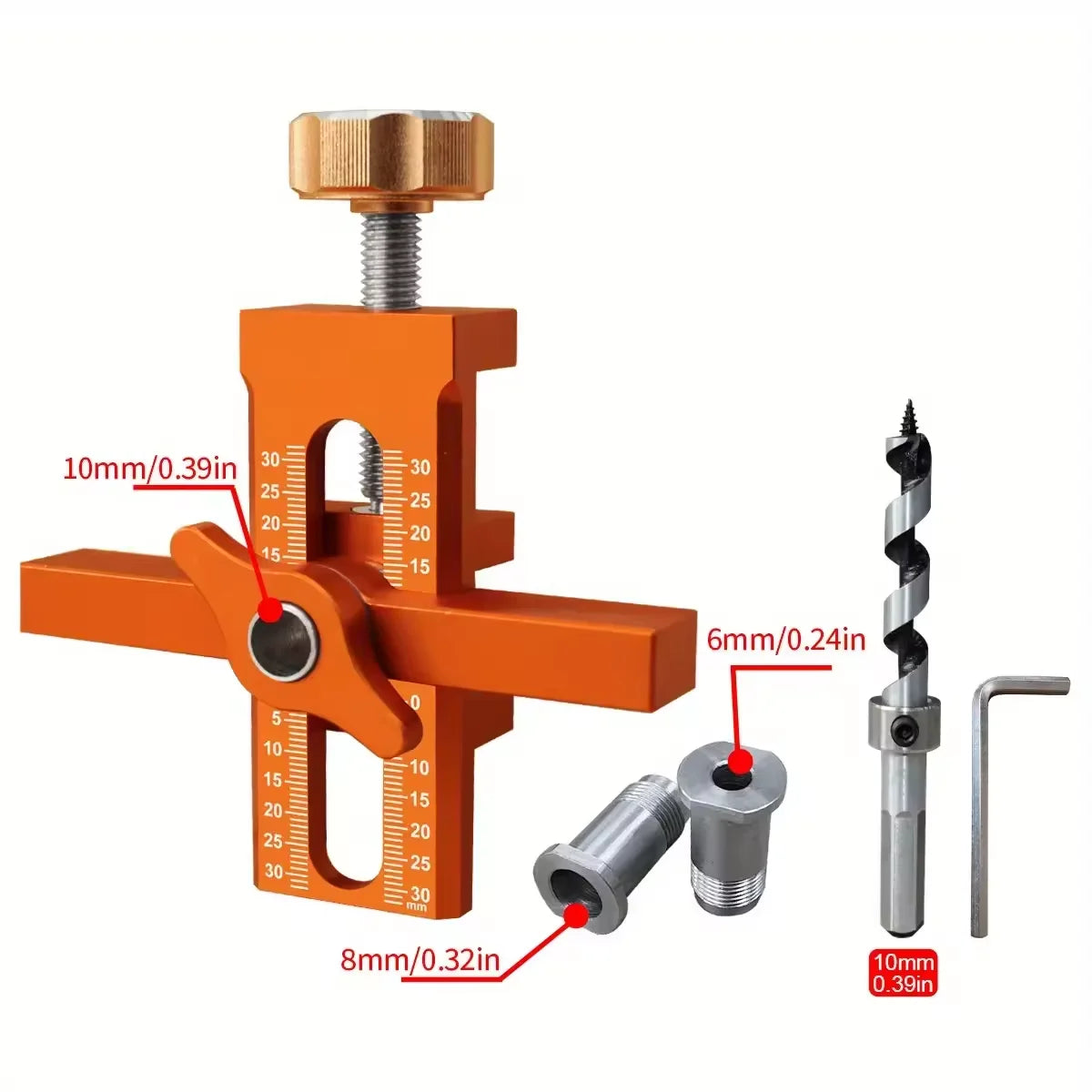

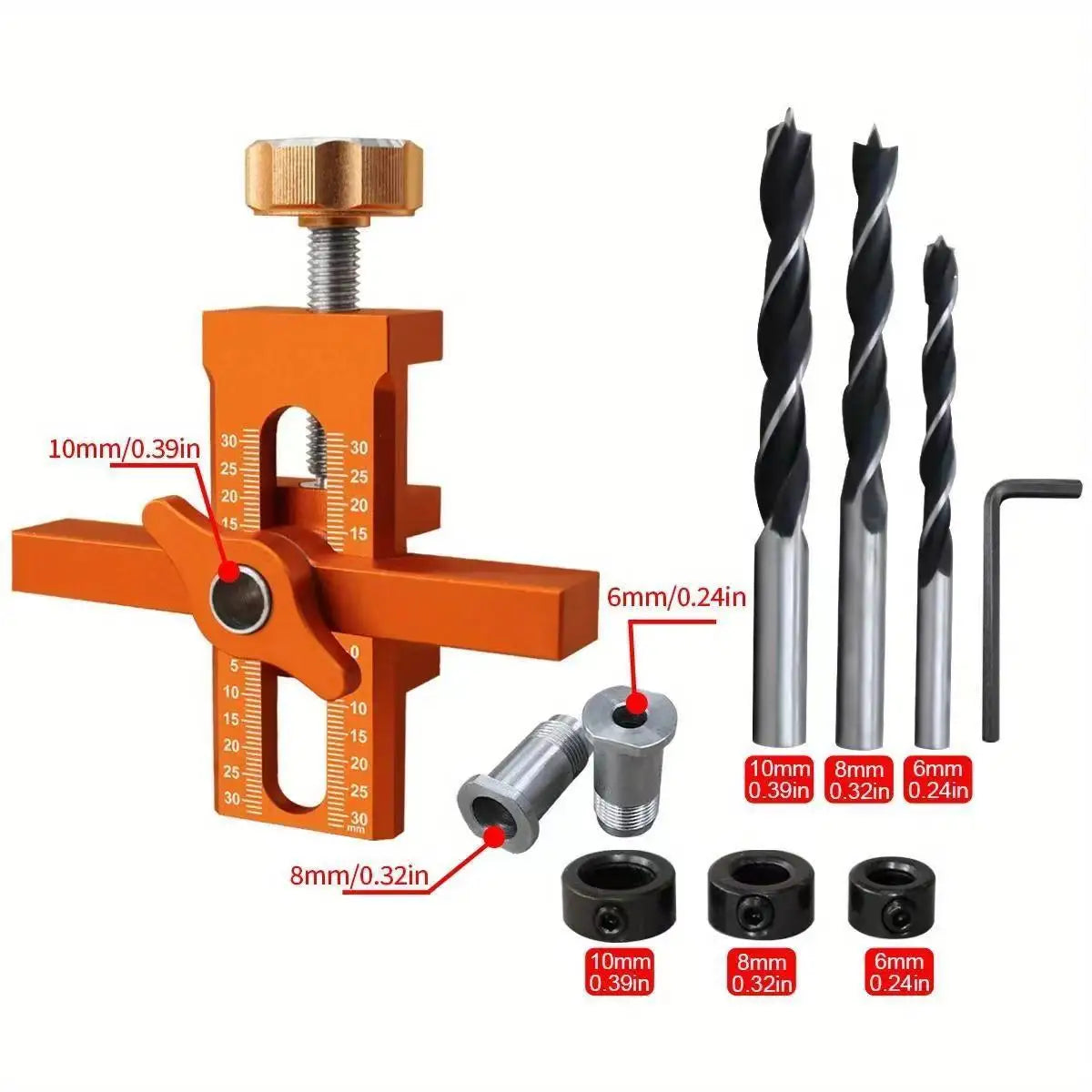

• Variants: Mounting Jig Kit A / Kit B / Kit C

🛠️ Perfect For

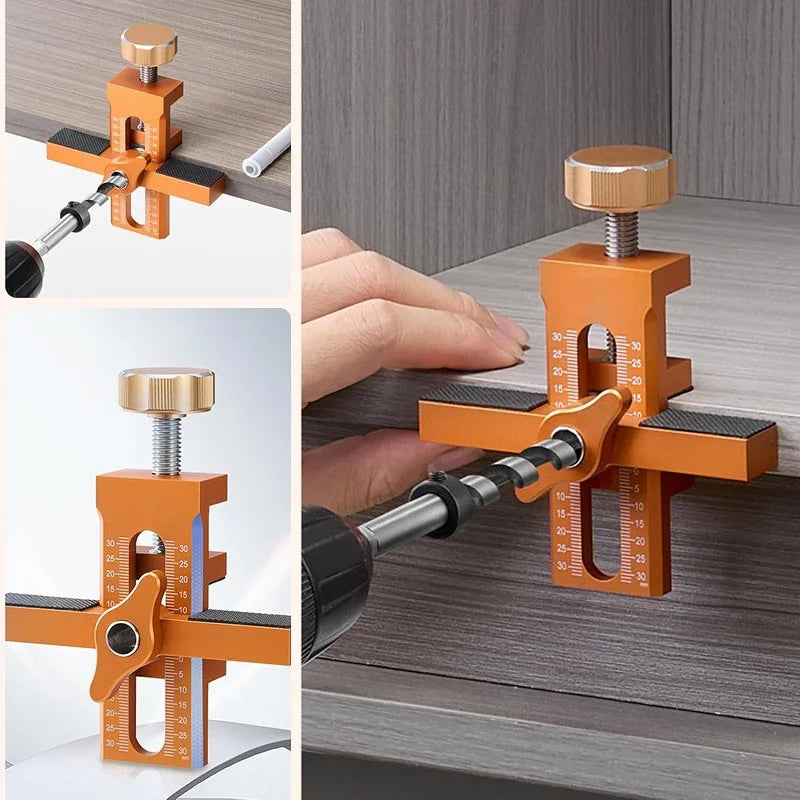

• Kitchen & bathroom cabinet door fitting
• Wardrobe & furniture door installation
• Hinge positioning & drilling
• Professional carpenters & joiners
• DIY home improvement projects

Position it. Drill it. Hang it perfectly.
